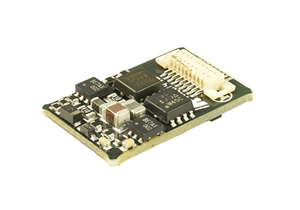

A Next18 (NEM662) DCC Decoder with brake Button function for realistic control.
Suitable for models fitted with a Next18 DCC decoder socket.
This decoder replaces item Nos. 36-567 and 36-567B and can be used in any model for which item Nos. 36-567 or 36-567B are recommended
Highlights include:
Multi-mode (NMRA-DCC format, Motorola protocol, DC Analogue and AC Analogue (Marklin)) with Back EMF function
4 powered function outputs (+2 logic level and 2 logic level/SUSI outputs)
0.7A continuous load
Suitable for models equipped with DC motors (including coreless motors)
Brake Button function for realistic control of braking (operates on F2)
Operating Modes
Multi-mode (NMRA-DCC format, Motorola protocol, DC Analogue and AC Analogue (Marklin)) with Back EMF function
14, 28 and 128 speed steps
Short and Long addresses
Motor Control Features
Suitable for models equipped with DC motors (including coreless motors)
0.7A continuous load
Variable pulse width frequency motor regulation (up to 40kHz)
Motor output overload protection; Back EMF (de-selectable)
Function Outputs
4 powered-function outputs with overload protection.
500mA load per output
500mA total load of all function outputs
2 additional logic level outputs and 2 logic level/SUSI outputs
Shunting speed and momentum key selectable
Dimensions
15mm x 9.5mm x 2.8mm
Default Address
Address 3
Programming
DCC Service Mode & DCC PoM (Programming on Main)
Additional Features
RailCom® Feedback system
Upgradable firmware
This decoder is manufactured on behalf of Bachmann Europe by Zimo. For full technical specifications and instructions, please refer to the Zimo user guide for MX618N18 at www.zimo.at/web2010/documents/MX-KleineDecoder_E.pdf
