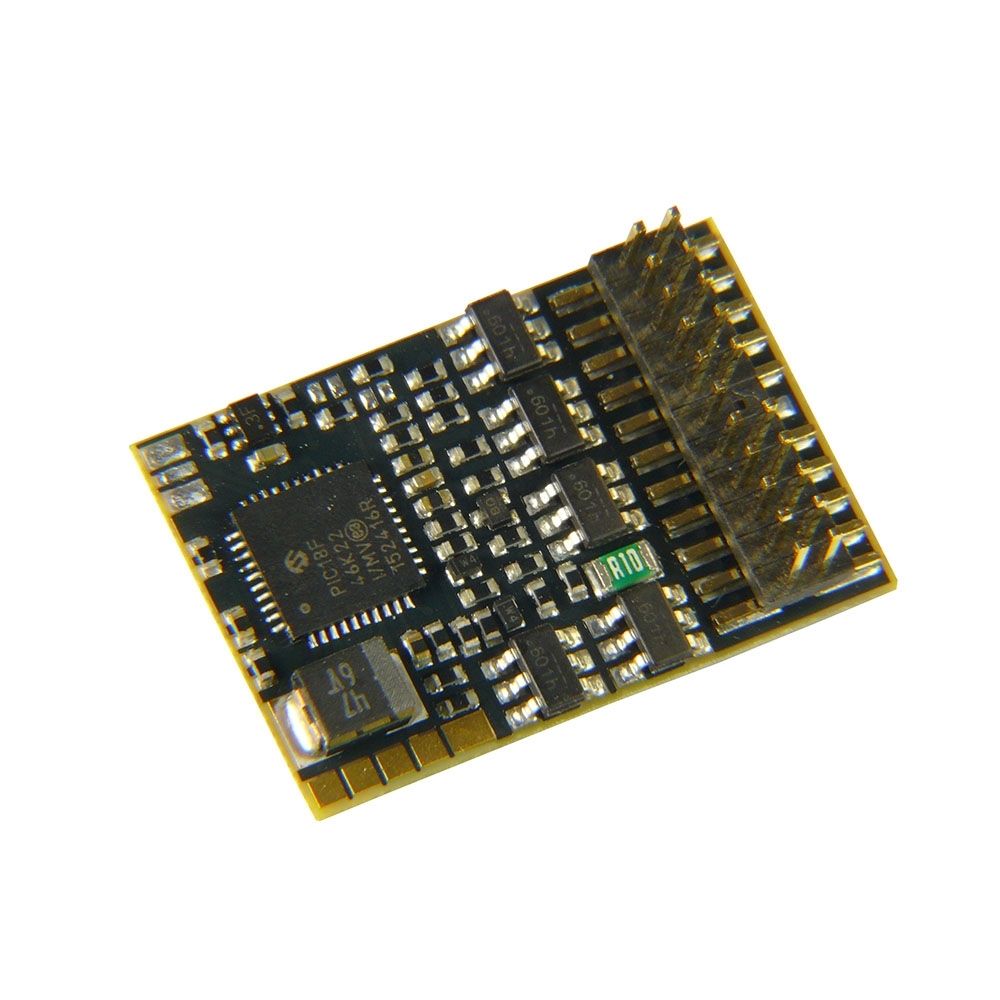

A Plux22 (NEM658) DCC Decoder suitable for models fitted with a Plux22 DCC decoder socket.
This decoder replaces item Nos. 36-570 and 36-570A and can be used in any model for which item Nos. 36-570 or 36-570A are recommended
Highlights include:
Multi-mode (NMRA-DCC format, Motorola protocol, DC Analogue and AC Analogue (Marklin)) with Back EMF function
10 powered function outputs (+2 servo or SUSI or logic level outputs)
1.2A continuous load
Suitable for models equipped with DC motors (including coreless motors)
Brake Button function for realistic control of braking (operates on F2)
Operating Modes
Multi-mode (NMRA-DCC format, Motorola protocol, DC Analogue and AC Analogue (Marklin)) with Back EMF function
14, 28 and 128 speed steps
Short and Long addresses
Motor Control Features
Suitable for models equipped with DC motors (including coreless motors)
1.2A continuous load
Variable pulse width frequency motor regulation (up to 40kHz)
Motor output overload protection; Back EMF (de-selectable)
Function Outputs
10 powered-function outputs with overload protection
800mA load per output
800mA total load of all function outputs
2 additional servo or SUSI or logic level outputs
Shunting speed and momentum key selectable
Dimensions
30mm x 15.3mm x 2.2mm
Default Address
Address 3
Programming
DCC Service Mode & DCC PoM (Programming on Main)
Additional Features
RailCom® Feedback system
Capacitor connections
Upgradable firmware
This decoder is manufactured on behalf of Bachmann Europe by Zimo. For full technical specifications and instructions, please refer to the Zimo user guide for MN330P22 at www.zimo.at/web2010/documents/MX-KleineDecoder_E.pdf
